Sidcon

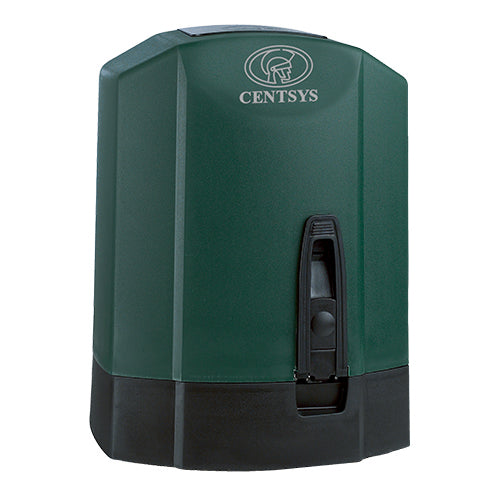

D10 (UP TO 1000KGS) – INDUSTRIAL SLIDING GATE MOTOR

Name: D10 (UP TO 1000KGS) – INDUSTRIAL SLIDING GATE MOTOR
Brand: Sidcon
Price: 1860.0 AUD
Availability: OutOfStock

$1,860.00 AUD

Sale Sold out

Tax included. Shipping calculated at checkout.

Style D10 Standard D10 Smart

Product variants

Quantity

So much thought has been put into every aspect of the D10 industrial sliding gate motor that we’ll have to wait for technology to catch up before we can make any improvements! The CENTSYS D10 uses a battery-driven high-torque 24V DC motor, coupled to a robust gearbox to provide an access automation system that is quick, powerful and battery backed up – perfect for industrial and commercial applications where heavy gates are installed.

Easy to set up and easy on the eye, the CENTSYS D10 has everything you’d expect from CENTSYS. Add an LCD controller that can monitor diagnostics and set any function at the touch of a button and you’ll understand why you won’t need another gate motor for a long time.

MAIN FEATURES:

Battery backup.
Intelligent speed control.
High duty cycle capability.
Smooth acceleration and deceleration.
Multiple operating features, including Intruder-detection Alarm Modes (a world first).
Exceptionally easy system setup via LCD user interface.
Onboard CENTSYS code-hopping multichannel receiver with selective add and delete.
Integrated ChronoGuard timer functionality (a world first).
Be alerted of gate activity via SMS by connecting a CENTSYS GSM device.

D10 TECHNICAL DATA:

	DESCRIPTION	VALUE
	Input Voltage	90 - 240V AC +/- 10%, 50Hz ¹
	Motor Voltage	24V DC
	Motor Power Supply	Battery-driven - (standard capacity 2 x 7Ah ²
	Push Force - Rated	30kgf
	Gate Speed (varies with load)	22 - 26m/min
	Duty Cycle - Mains Present	45% ^{3, 4}
	Daily Operations - Max	750 ³
	Gate Mass - Max	1000kg
	Onboard Receiver Specification	CENTURION code-hopping, multichannel, 433MHz, capacity - 500 transmitter buttons

1 Can operate off a solar supply, consult CENTSYS for assistance.
2 Based on a pull force of less than 50% of rated.
3 2 x 7Ah battery (can be upgraded for longer power failure autonomy).
4 Based on 25°c ambient temperature and unit not in direct sunlight.
